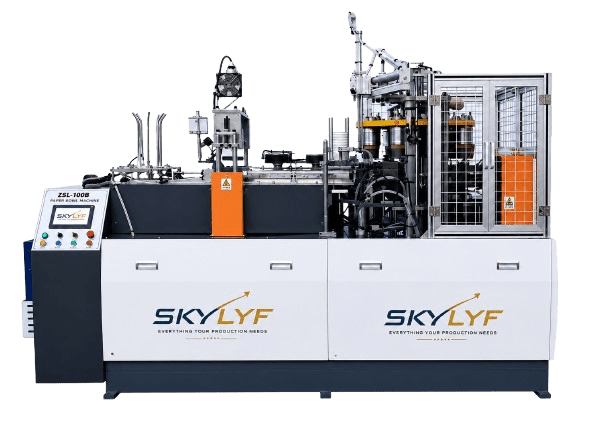

ZSL-100B Paper Bowl Making Machine
The ZSL-100B Fully Automatic Paper Bowl Making Machine is a high-performance, medium-speed machine designed for manufacturing premium-quality paper bowls ranging from 12 oz to 35 oz. Built with a heavy-duty steel body, gear-driven open cam transmission, and an automatic oil lubrication system, the machine delivers stable operation, long service life, and consistent production quality.
60-70
Bowls Per Minute
12-35 oz
Bowl Size Range
15 KW
Total Power
PLC
Smart Control
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZSL-100B Fully Automatic Paper Bowl Making Machine |
| Paper Bowl Size | 12–35 oz |
| Maximum Bowl Height | 125 mm |
| Maximum Bottom Diameter | 125 mm |
| Raw Material | Single PE / Double PE Coated Paper |
| Paper GSM | 140–350 GSM |
| Production Speed | 60–70 pcs/min |
| Voltage | 380V, 50Hz |
| Total Power | 15 kW |
| Air Pressure | 0.6 MPa |
| Air Consumption | 0.6 m³/min |
| Machine Weight | 2300 kg |
| Machine Dimensions (L × W × H) | 2600 × 1450 × 1900 mm |
| Air Compressor | Required (Not Included) |
Bowl Production Capacity
Designed for small and medium-sized paper bowls, the machine can produce bowls with a maximum height of 125 mm and a maximum bottom diameter of 125 mm. It is widely used for manufacturing soup bowls, noodle bowls, salad bowls, snack bowls, ice cream bowls, rice bowls, and various takeaway food containers.
The ZSL-100B is capable of producing:
- Paper Bowl Size: 12–35 oz
- Maximum Bowl Height: 125 mm
- Maximum Bottom Diameter: 125 mm
Custom bowl sizes can be produced by changing the mould according to customer requirements.
Advanced Features
Heavy-Duty Gear Cam Transmission
- High-precision gear-driven open cam mechanism
- Eliminates traditional chain transmission
- Smooth, accurate, and stable machine operation
- Reduced maintenance requirements
- Longer mechanical lifespan
Automatic Oil Lubrication System
- Centralized automatic oil lubrication
- Continuous lubrication of moving components
- Reduced wear and friction
- Improved machine durability
- Stable long-term operation
High-Speed Production
- Production Capacity: 60–70 bowls per minute
- Consistent forming accuracy
- Suitable for continuous industrial production
- High production efficiency
Ultrasonic Side Sealing
- Advanced ultrasonic sealing technology
- Strong, clean, and leak-proof side sealing
- Energy-efficient operation
- No open flame required
Hot Air Bottom Heating & Knurling
- Hot air heating system for reliable bottom sealing
- Strong bottom knurling
- Excellent leak resistance
- High-quality bowl finishing
Robotic Bowl Collection System
- Automatic robotic hand collection
- Reduces manual handling
- Prevents product damage
- Improves production efficiency
Intelligent PLC Control System
- Advanced PLC control
- Automatic machine monitoring
- Easy parameter adjustment
- Stable and reliable operation
- Automatic fault diagnosis
User-Friendly Touch Screen Interface
- Easy-to-operate HMI touchscreen
- Real-time production monitoring
- Easy parameter adjustment
- Simple machine settings
- Fast parameter adjustment
Machine Advantages
Applications of ZSL-100B Paper Bowl Making Machine
The ZSL-100B is ideal for manufacturing a wide range of disposable paper bowls, including:
Why Choose the ZSL-100B Paper Bowl Making Machine?
The ZSL-100B Fully Automatic Paper Bowl Making Machine combines advanced automation technology, high-speed production and reliable performance to deliver consistent quality paper bowl manufacturing.
Gear-Driven Open Cam Mechanism
Automatic centralized oil lubrication
Ultrasonic side sealing technology
Hot air bottom heating and knurling
Robotic automatic bowl collection
Intelligent PLC control with touchscreen
Premium branded electrical components
Stable production speed of 60–70 bowls per minute
Low Maintenance Operation
Long service life with reliable performance
Consistent, high-quality paper bowl production
Ideal for commercial and industrial paper bowl manufacturing
Conclusion
The ZSL-100B Fully Automatic Paper Bowl Making Machine is a reliable, efficient, and high-performance solution for manufacturers looking to produce 12–35 oz paper bowls with exceptional quality and consistency. Equipped with a gear-driven open cam system, automatic oil lubrication, ultrasonic side sealing, hot air bottom knurling, robotic bowl collection, and an intelligent PLC touchscreen control system, the ZSL-100B offers outstanding productivity, low maintenance, and dependable long-term operation, making it an ideal investment for modern paper bowl manufacturing.
Get Free QuoteFrequently Asked Questions
Everything you need to know about the ZSL-100B Fully Automatic Paper Bowl Making Machine, its production capacity, specifications, automation technology, and industrial performance.
What is the ZSL-100B Fully Automatic Paper Bowl Making Machine?
+The ZSL-100B is a fully automatic paper bowl making machine designed to manufacture premium-quality paper bowls ranging from 12 oz to 35 oz with stable, high-speed industrial production.
What bowl sizes can the machine produce?
+The machine produces paper bowls from 12 oz to 35 oz with a maximum bowl height of 125 mm and a maximum bottom diameter of 125 mm.
What is the production speed of the ZSL-100B?
+The ZSL-100B delivers a production capacity of 60–70 paper bowls per minute for continuous industrial manufacturing.
What type of paper does the machine support?
+It supports both single PE coated and double PE coated paper with a paper range of 140–350 GSM.
What sealing technology is used?
+The machine uses ultrasonic side sealing along with hot air bottom heating and knurling to produce strong and leak-proof paper bowls.
Does the machine include automatic lubrication?
+Yes. A centralized automatic oil lubrication system continuously lubricates moving parts, reducing wear and maintenance.
Is the machine easy to operate?
+Yes. The machine features an intelligent PLC control system with a user-friendly touchscreen interface for simple operation and monitoring.
Can customized bowl sizes be manufactured?
+Yes. Different bowl sizes can be produced by changing the mould according to customer requirements.
What products can be manufactured using the ZSL-100B?
+The machine is suitable for manufacturing soup bowls, noodle bowls, salad bowls, rice bowls, snack bowls, ice cream bowls, takeaway food bowls, and other disposable paper food containers.
What are the power requirements of the machine?
+The machine operates on 380V, 50Hz power with a total installed power of 15 kW.
Does the machine require an air compressor?
+Yes. An external air compressor is required with an operating pressure of 0.6 MPa and air consumption of 0.6 m³/min.
What are the key advantages of the ZSL-100B?
+The machine offers gear-driven open cam technology, automatic oil lubrication, ultrasonic sealing, robotic bowl collection, PLC touchscreen control, low maintenance, energy-efficient operation, and consistent high-quality bowl production.
